Milont KTR2 self reset linear displacement sensor
產(chǎn)品參數(shù) | Product parameters

Characteristic:

? ? ? Principle of potentiometer, absolute position measurement

? ? ? Conventional output voltage signal, current signal output and RS485 signal output can be customized

? ? ? High precision, good stability, dust and wear resistance

? ? ? The structure is simple and easy to install and use

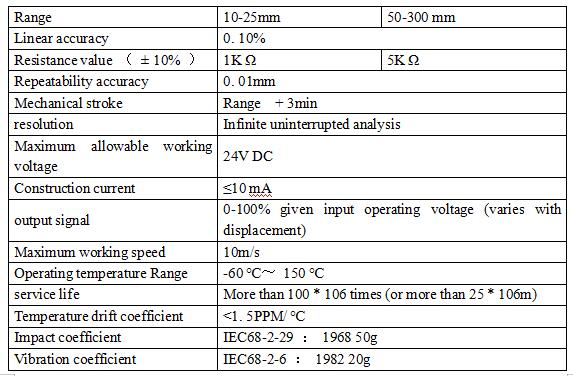

Performance parameters of displacement sensor

? ? ?Model: KTR 2

? ? ?Range: 10-300mm

? ? ?Resistance: 5K (or 1K)

? ? ?Linear accuracy: ± 0.1%

? ? ?Repeatability accuracy: 0.01mm

? ? ?Resolution: infinite analysis

? ? ?Maximum allowable working voltage: 24V

? ? ?Recommended current: ≤ 10mA

? ? ?Output signal: voltage signal

? ? ?Maximum working speed: 10M / S

? ? ?Service temperature: - 60 ℃ to + 150 ℃

? ? ?Service life: > 100 million times

? ? ?Temperature drift coefficient: < 1.5ppm / ℃

? ? ?Impact coefficient: iec68-2-29: 1968 50g

? ? ?Vibration coefficient: iec68-2-6:1982 20g


Application area:

? ? ?Hollow bottle blowing machine

? ? ?It equipment

? ? ?Tension adjustment

? ? ?High speed automatic feeder

? ? ?Speed regulation

? ? ?Printing machinery

? ? ?Paper packaging machinery

產(chǎn)品參數(shù) | Product parameters
